Netcomm NTC-140-02 Industrial / Commercial 4G M2M Router - Includes 2 x Antennas (GPS / Cellular) and 12V DC PSU, 12 Mth Wty (Refurbished) [NTC-140-02-EXG]

Netcomm NTC-140-02-EXG Description:

NetComm NTC-140-02 Wireless 4G M2M Router - 12 Mth Wty (Refurbished)

Model: NTC-140-02

The robust and intelligent NetComm 4G M2M Router is designed to provide real-time M2M data connectivity even in harsh environments. The NTC-140-02 creates reliable point-to-point or point-to-multi-point wide area network (WAN) connections for a variety of mission critical applications such as primary broadband, video surveillance, retail payments and business continuity.

• Powerful and flexible industrial cellular router platform supporting 4G with fallback to 3G and GSM
• Ideal for providing primary and backup wireless connectivity over 4G networks
• Two Gigabit Ethernet ports for networking flexibility
• Integrated GPS support
• VPN support for establishing a secure connection over public cellular network using OpenVPN
• Remote diagnostics and system monitoring
• Rugged enclosure, wide operating temperature range, wall mount option and a flexible range of power options



Integrating seamlessly with your existing network, the NTC-140 is an ideal solution to complement any current deployment. A powerful processor delivers optimal performance, and the embedded Linux OS combined with our SDK enables custom software applications to be deployed onboard the device. The user-friendly web interface (supported on any browser) and 8 tri-color LED indicators make for simple setup and management, and SMS commands can also be used to access the current status, change configurations or execute commands.

When outside 4G coverage, the NTC-140 ensures continuous service with an automatic 3G failover. It will then fall-back to 4G when back in coverage, or when the Gigabit Ethernet ports on the device are used as an alternate connection

With support for protocols such as LWM2M, TR-069 and SNMP, the NTC-140 provides quick and easy integration with a wide range of remote management platforms. The device is ideal for long term deployments, providing a low total cost of ownership over its lifespan. A built-in notification engine ensures a quick response to events requiring human intervention, sending alarms via email or SMS, adding an additional layer of self-monitoring

Rigorously tested in the harshest environments, the NTC-140 has a durable, mountable, hard-wearing rubber enclosure – built to withstand extreme temperature, shock and vibration environments.

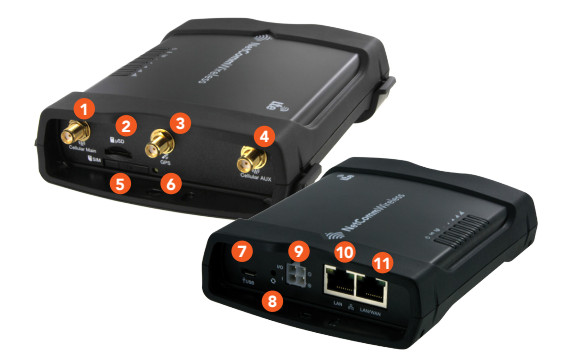

1. MAIN Cellular antenna connector | 2. MicroSD card slot (up to 32GB MicroSD cards) | 3. GPS antenna connector | 4. AUX Cellular antenna connector | 5. SIM card slot (for USIM/SIM 2FF format) | 6. SIM tray eject button

7. Micro USB 2.0 OTG port (host or device mode) | 8. Reset button | 9. Molex Mini-Fit 4 pin connector (power, ignition input and I/O port) | 10. Gigabit Ethernet LAN port | 11. Gigabit Ethernet LAN/WAN port

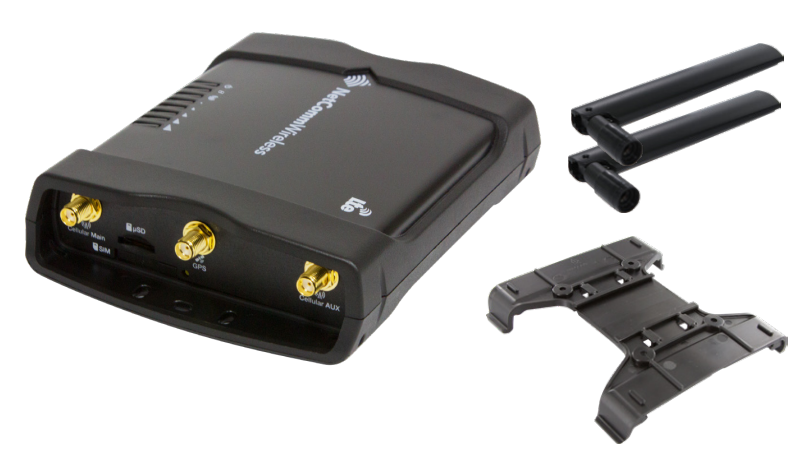

• 1 x NetComm Wireless 4G M2M Router (NTC-140-02)
• 2 x Cellular antennas
• 1 x DIN rail mounting bracket

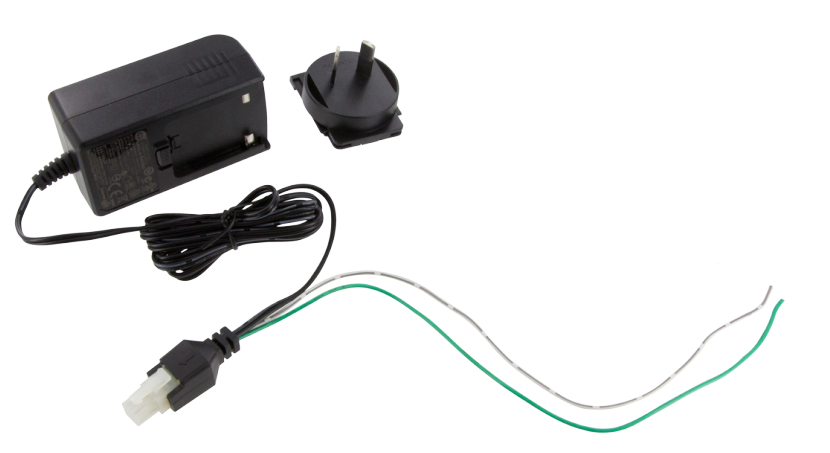

• 1 x Wiring loom with Molex connector (12V)



• 1 x 12V DC Power Supply
