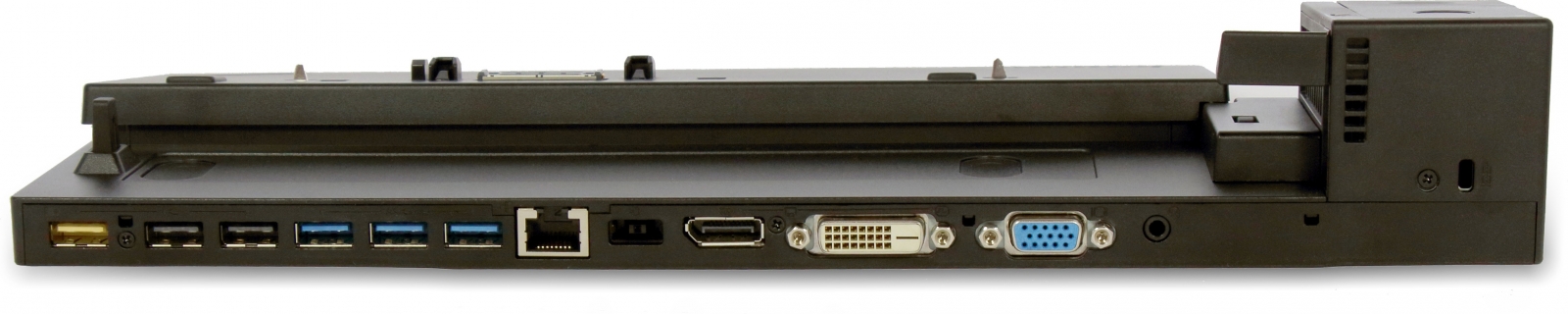

Product image for reference only
Making mince-meat out of your workload, the completely re-designed and supercharged ThinkPad Ultra Dock with an included ThinkPad 90W AC Adapter grows capability without growing in size. The ultimate docking solution includes a wide range of video outputs, including HDMI 1.4, and support for multiple external monitors so you can multi-task like never before.3x USB 2.0, one supports always-on USB charging 3x USB 3.0 10/1000 Gigabit Ethernet, supports enterprise manageability 2x DisplayPort 1.2* 1x DVI-D* 1x HDMI 1.4* 1x VGA* Driver-free, perfect video quality 1x Stereo/Mic Combo Audio Port Charges your ThinkPad with an included ThinkPad 90W AC Adapter Physical rear alignment for a perfect dock every time Smaller desktop footprint vs. Series 3 docking stations Comes with ThinkPad AC adapter (90W) * Some of the video ports do have exclusive use and are also dependent on the docked ThinkPad configuration.
Features & Benefits
| Brand | Lenovo |
| Product Type | Docking Station |
| Max Number of External Monitors | 3 |
| Weight | 0.92 kg (2.03 lbs) |
| Refresh Rate | DisplayPort 1 or HDMI: 3840 x 2160 @ 30 Hz; DisplayPort 2: 3840 x 2160 @ 30 Hz or DVI: 1920 x 1200 @ 60 Hz; VGA: 1920 x 1200 @ 60Hz;; "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
| AC Plug | Australian Standard Plug Type I |
| Hardware Requirements | ThinkPad Bottom Docking Connector |
| Warranty | Customer Replaceable Unit (CRU) |
| Output Power | 65 W |
| Brand | ThinkPad |
| OS Requirements | Windows 10, Windows 8.1, Windows 8, Windows 7 |
| Agency Approvals | AS/NZS S-DOC, BSMI, CB, CE, EU DOC, FCC, GOST, KCC, NOM, sDOC, SEPRO, VCCI |
| Audio Ports | 1 x 3.5 mm Stereo/Mic Combo Port |
| Charging Port | ThinkPad Slim-tip Port |
| USB Ports | 3 x USB 3.0; 3 x USB 2.0 (1 always-on) |
| Video Ports | 2 x DisplayPort 1.2; 1 x HDMI 1.4; 1 x DVI-D; 1 x VGA |
| Package Type | Brown box |
| Warranty Period | 1 Year |
| Maximum Operating Temperature | 43 degrees Celsius (109 degrees Fahrenheit) |
| Minimum Operating Temperature | 5 degrees Celsius (41 degrees Fahrenheit) |
| Input Power | 90 W |
| Power Button | Yes |
| Power Delivery | Yes |
| Shipment Group | ThinkPad Ultra Dock 90 W; Two Security Keys; ThinkPad Slim-tip 90 W AC adapter; Power cord; Product information, safety and warranty poster |
| Number of USB Connections | 2 |
| Compatibility | A475, L570, L470, L460, L560, L450, ThinkPad 25, T470p, T470s, T570, T470, T460s, T560, T460, T460p, T550, T450, T450s, P51s, X270, X260, X250 |
| Height (US) | 2.19 in |
| Width (US) | 13.58 in |
| Depth (US) | 6.40 in |
| Weight (US) | 2.03 lbs |
| Height | 55.6 mm |
| Width | 345 mm |
| Depth | 162.5 mm |
| Weight | 0.92 kg |
| Min Operating Humidity | 5% |
| Max Operating Humidity | 95% |
| Min Operating Temperature | 5 C |
| Max Operating Temperature | 43 C |
| Supported Operating Systems | OS Independent |
| Other Information | OS Support: Windows 10, Windows 8.1, Windows 8, Windows 7 |
