Product image for reference only
Universal docking for today’s notebooks
Get to work with a single cable from your USB-C™-enabled notebook to your displays, devices, and wired network with the versatile, elegant, and space-saving HP USB-C Dock G5. The dock is compatible with HP notebooks, MacBook® computers, and other notebooks.
Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-C™- and Thunderbolt™-enabled notebooks.
Add your accessories and up to three displays to the dock. Then simply connect it to your notebook through a single USB-CTM cable to access your devices and charge your PC.
Help IT secure and remotely manage your deployed commercial HP notebooks1 and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.
Reclaim your desk with a compact dock that takes up only 5 x 5 inches of space.
Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) asset management tool.
Updating your dock fleet has never been easier. IT can save time by pushing dock firmware updates to managed notebooks for later installation on the dock, even when they’re disconnected from each other.
Rigorous testing helps assure dock compatibility across HP notebooks and Apple®, Dell, and Lenovo notebooks with USB-C™ charging ports.
| Part Number | 5TW10AA |
| Colour | Black |
| Displays supported |
3 displays is the maximum displays supported, depending on the capabilities of the host machine. Triple 4K displays requires a DP 1.4 machine with DSC in high res mode. (The DSC supported version and color format depends on GFX capability. DSC is disabled when display is attached to the VGA port or to an external DP2 VGA dongle) |
| Dimensions (H x W x D) | 122 x 122 x 45 mm |
| Weight | 0.68 kg |

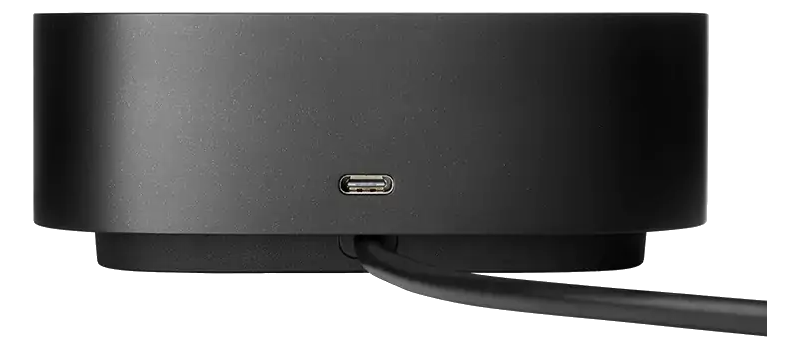

| Front ports |
(1) USB-C™ port with data and power out (15W); (1) USB-C™ cable to connect to host system (1 m) |
| Side ports |
(2) USB-A 3.0 Gen 1 charging ports; (1) combo Audio Jack |

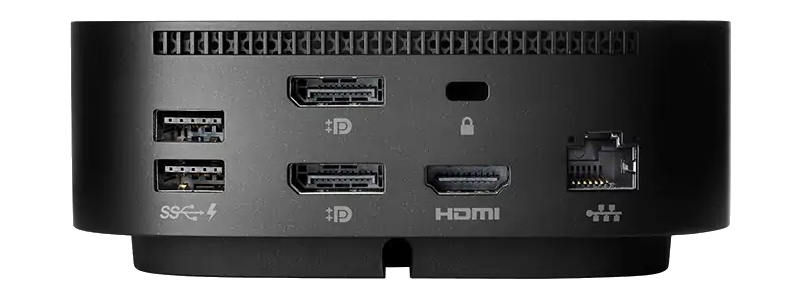

| Back ports |
(2) USB-A 3.0 Gen 1 charging ports; (2) DisplayPortTM ports; (1) 10/100/1000 RJ 45 port; (1) HDMI 2.0 port; (1) standard lock slot |
| Operating systems | Win 10; Win 11; MacOS; Chrome OS; Linux ThinPro 8.0 |
| Power to system |
Up to 100W via USB-CTM (up to 75W on non HP machines) Separate AC power needed for HP ZBooks that require more than 100W power delivered via USB-C alt mode |
| Power to host (USB-C PD) | 5V , 9V, 10V, 12V, 15V, 20V all at 5A MAX |
| What's included | HP USB-C Dock G5 + AC Adapter |
| Condition | Refurbished |
| Warranty | 12 Months Warranty |
